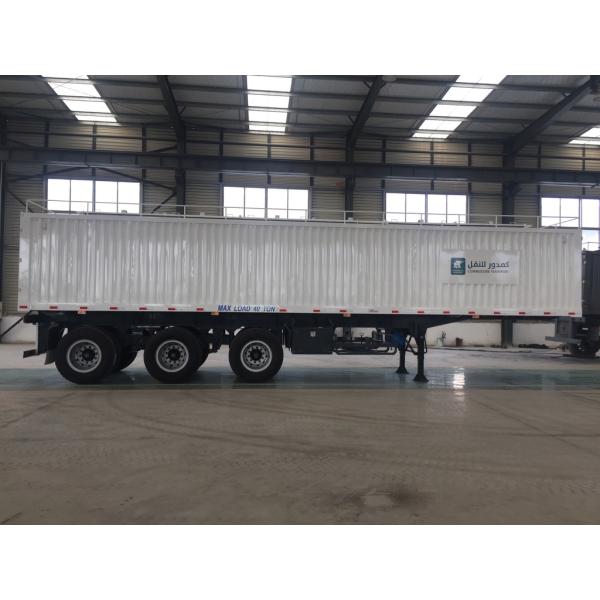

Box 3-4 Axles Flatbed Container Trailer 60-100Tons Dry Food Van Transport

Categories Side Wall Semi Trailer
Brand Name: Star Trailer
Model Number: SW-014
Certification: ISO/CCC
Place of Origin: Shandong China (Mainland)
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, D/A, T/T
Supply Ability: 300 units per month
Delivery Time: 40 days after receiving your payment
Max Payload: 60T
Size: 12550mm*2590mm*2702
Material: Steel
Brand name: Star Trailer
Axle brand: FUWA OR BPW
  • Product Details
  • Company Profile

Box 3-4 Axles Flatbed Container Trailer 60-100Tons Dry Food Van Transport

Box 3-4 Axles Flatbed Container Trailer 60-100Tons Dry Food Van Transport
Overview
Quick Details

Use:Truck Trailer Type:Semi-Trailer Material:Steel

Certification:CCC/ISO Size:12400*2500*3650 OEM No.:Optional

Max Payload:50T Brand Name:StarTrailer Model Number:Shuyue

xle:FUWA 13 tons Brake:Wabco Floor thickness:3mm
Supply Ability

Supply Ability: 300 Unit/Units per Month 2 or 3 units packaged together to reduce the shipment cost.

Packaging & Delivery

Packaging Details

Nude

Port: China Port

Lead Time : Around 40 days after payment


Type3 Axles Van Semi Trailer
Dimension
Size12500*2500*1550mm
Weight
Payload30,000kg
Tare weightApprox. 1,100kg
G.V.W.RApprox. 41,000kg
Frame&Structure
Main beamMaterial Q345B,Fabricated”H”beam height 500mm,Top flange thickness 14mm,Middle web thickness 8mm,Bottom flange thickness 16mm
Side beam16#channel steel
Platform3mm thick chequer plate with supporting channel
Stand columnStandard design with support to the frame body
RoofSteel ,water proof design
Cross beam80*40mm square tube
KingpinJOST 2"SAE kingpin,bolted in type
Welding standardAll welding are to be done by qualified welder per applicable national standard
PaintingShot blast at standard SA2.5 prior to application of primer,polyurethane top coat. Total DFT not less than 100um
Running gear
Suspensionechanical suspension,leaf spring 13mm×90mm,China
AxleFUWA150×150square beam axle,3pcs*13ton capacity,China
Brake systemDuine pneumatic brake,SAE hose and connector
Brake chamber4 units T30/30 spring brake chambers,2 units T30 brake chambers
Air tank40L,2pcs,China
Emergency relay valveShunanda relay valve
TireDouble coin brand,12R22.5.12pcs, China
Rim9.0*22.5 steel disc wheel,10 holes ISO,12pcs,China
Landing gearStandard 28T two speed telescopic manual landing gear
