FZ-NP330 Computer beam saw/CNC panel saw
FZ-NP330 can be widely used for processing all kinds of density
boards, shaving boards, wood-based panels, ABS panels, PVC panels,
organic glass plates and solid wood and others with wood structure
and similar hardness. More and more panel furniture maker choose
the computer beam saw for their automatic production line.
Computer beam saw features:
1. Floating effect of the floating platform is caused by the pressure,
to facilitate feeding, especially suitable for the heavy plate, and
can avoid the surface damage.
2. The machine adopts imported magnetic feet as feed positioning
detection control, precise positioning detection size effectively,
improve the cutting precision.
3. Advanced reasonable electrical control design, equipment can be
realized automatically return, to ensure the safety of the
4. Using precision linear slide rail, strong stability, high
5. Adopt Taiwan precision gear and rack, durable.
6.High quality Japanese Mitsubishi CPU control main board.
7. PC Control System
8. Sheet metal clip is expected to adopt cylinder and feed forward
through the roller bed surface, feeding and accurate, and ensure
that saw cutting precision, and will not hurt the workpiece
9. Automatic sheets-feeder with Japan's Mitsubishi high-performance
servo motor drive, big torque, accurate positioning and long
10.Speed of saw carriage can reach 5-100m/min
11.Speed adjustable for forward moving of saw carriage.
1. Pneumatic compressed feeding roller is applied, the pressing
force can be adjusted by stages which is favorable for smooth
feeding of timbers with different thickness.
2. International brands electrical parts are applied for good
3. Spare parts are thick and solid to maintain high precision, high
stability and reliability.
4. Completely sealed safety shield can avoid flying of saw dust and
isolate noise efficiency and protect operators.
5.Mass production is several times more efficient than common
machinery and saves time and power.
|Max. sawing length||mm||3200|
|Max. sawing thickness||mm||90|
|Main saw blade diameter||mm||Ø400|
|Main spindle diameter||mm||Ø30|
|Main saw blade spindle speed||r/min||4800|
|Scoring saw blade diameter||mm||Ø180|
|Scoring saw spindle diameter||mm||Ø30|
|Scoring saw blade spinlde speed||r/min||6500|
|Auto feeding speed||m/min||42|
|Saw back speed||m/min||100|
|Saw forward speed||m/min||0-80|
|Main saw motor||kw||13|
|Scoring saw motor||kw||2.2|
|Saw servo motor||kw||1.5|
|feeding servo motor||kw||1.5|
|Total motor power||kw||19|
Computuer beam saw details:
Industrial PC control System, with printer
1) Easy operation, safety & reliable.
2) Which has complete operating hints and troubleshooting guide
3) It’s cutting plan can edit manually; can simulate or execute
cutting plans.4) Can compatible with bar code manage software or factory
Manipulator automatic feeding device
The clamping hand adopts anti-collision rubber head to protect the
Servo motor drive using Taiwan imported KH grinding grade gear,
Advantages: high hardness, high precision, wear resistance, long -
term guarantee accuracy and so on
|Imported high precision reducer, automatic oiling system|
Big and small saws start independently and lift vertically.Adopting precision circular guide rail
|Saw car drive using rack and pinion, servo motor traction|
|Guide rail device: Taiwan imported high precision circular guide rail parallel double
suspension, more stable , durable and wear-resistant, guarantee
sawing precision and no deformation for long-term||The table adopts air floating bead, 3.0kw high pressure fan, the
workpiece is easy to move|
|The main saw uses 13kw motor||Delta servo, Delta PLC, Korea LS electrical, contactor|

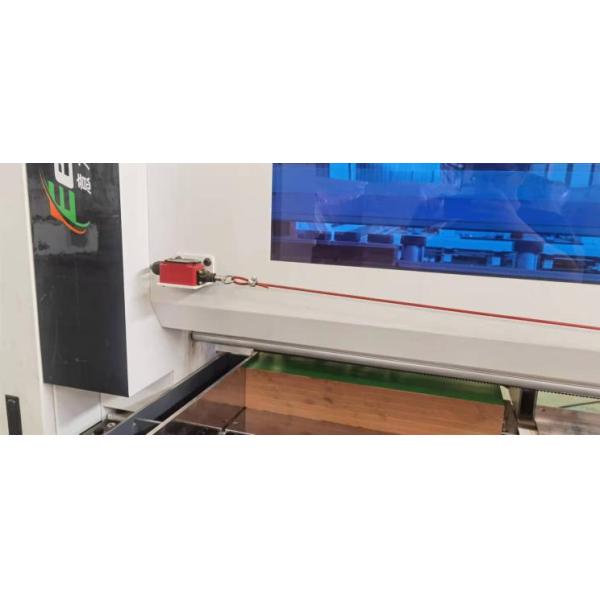

The feed port adopts manual wire pulling and emergency stopping
device. Keep workers more safer
|Hard chrome plated steel table panel|
Option : side alignmentServo side alignent, precise positioning
Package and shipping:
We will take care of your machinery packages well like picture
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for
We will make export standard strong Wooden box case package as your
The machine is guaranteed for 12 months .Within 12 months under
normal using and maintenance, if the machine has something problem
,you will get spare part for free . More than 12 months,you will
get the cost price for accessories. You will also get technical
support and service all the time.
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
