| Categories | Coil Winding Nozzle |
|---|---|
| Brand Name: | QIANHE |
| Model Number: | W0808-3018-3010 |
| Place of Origin: | Hangzhou China |
| MOQ: | 20 pcs |
| Price: | US$6.5-US$15 PER PCS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 pcs per month |
| Delivery Time: | 3-7 working days |
| Packaging Details: | Carton with box /foam |
| Material: | Tungsten Carbide |
| Hardness: | HRC90 |
| Anti bending degree: | Over 2300N/mm |
Tungsten Carbide Nozzles with High Hardness and Resistance (Coil Winding Nozzle, Wire Guide Tube)
Coil Winding Nozzles / Wire Guide Tubes With Precision Grinding
We supply high quality Tungsten carbide coil winding nozzle and Ruby tipped coil
winding nozzle for Nittoku coil winding machine, CNC Automatic coil winding machine
and other brand coil winding machines,.
There is description and features about the Tungsten Carbide Nozzle as following:
Tungsten Carbide nozzle is used on coil winding machine.it is made precisely of super
hard alloy and enjoys the hardness over HRA90.degree while the anti bending degree
reached over 2300N/mm.Two terminals and the inner and outlet are all receive mirror
surface treatment to ensure enameled wire makes no scrape. High hardness, resistance
to flexure, block and impact .
Key advantages of Tungsten Carbide Nozzle :
Specification and description:
| Part.No. | Model | Specifications(mm) | |||||
| L | L1 | D | D1 | d1 | d2 | ||
| 1 | W0202-2005-1505 | 15 | 5 | 2.0 | 0.5 | 0.2 | 0.2 |
| 2 | W0202-2000-3300 | 33 | * | 2.0 | * | 0.2 | 0.2 |
| 3 | W0202-3010-3015 | 30 | 15 | 3.0 | 1.0 | 0.2 | 0.2 |
| 4 | W0202-3006-3010 | 30 | 10 | 3.0 | 0.6 | 0.2 | 0.2 |
| 5 | W0202-3015-3015 | 30 | 15 | 3.0 | 1.5 | 0.2 | 0.2 |
| 6 | W0202-3007-3508 | 35 | 8 | 3.0 | 0.7 | 0.2 | 0.2 |
| 7 | W0303-3008-3012P | 30 | 12 | 3.0 | 0.8 | 0.3 | 0.3 |
| 8 | W0303-3012-3519 | 35 | 19 | 3.0 | 1.2 | 0.3 | 0.3 |
| 9 | W0303-3008-4506 | 46 | 6 | 3.0 | 0.8 | 0.3 | 0.3 |
| 10 | W0303-3020-3515 | 35 | 15 | 3.0 | 2.0 | 0.3 | 0.3 |
| 11 | W0303-0800-3500 | 35 | * | 0.8 | * | 0.3 | 0.3 |
| 12 | W0303-3018-4018 | 40 | 18 | 3.0 | 1.8 | 0.3 | 0.3 |
| 13 | W0404-3010-3009 | 30 | 9 | 3.0 | 1.0 | 0.4 | 0.4 |
| 14 | W0404-3007-4528 | 45 | 28 | 3.0 | 0.7 | 0.4 | 0.4 |
| 15 | W0505-3012-4506T | 45 | 6 | 3.0 | 1.2 | 0.5 | 0.5 |
| 16 | W0606-3012-3520 | 35 | 20 | 3.0 | 1.2 | 0.6 | 0.6 |
| 17 | W0606-3016-4010T | 40 | 10 | 3.0 | 1.6 | 0.6 | 0.6 |
| 18 | W0808-3018-3518 | 35 | 18 | 3.0 | 1.8 | 0.8 | 0.8 |
| 19 | W0808-3018-3010 | 30 | 10 | 3.0 | 1.8 | 0.8 | 0.8 |
| 20 | W1212-3022-3010 | 30 | 10 | 3.0 | 2.2 | 1.2 | 1.2 |
All size can be customized according to customer requirements
The the measurements drawing as follow please confirm your nozzles size according
to your winding machine and coil products.
Picture show :

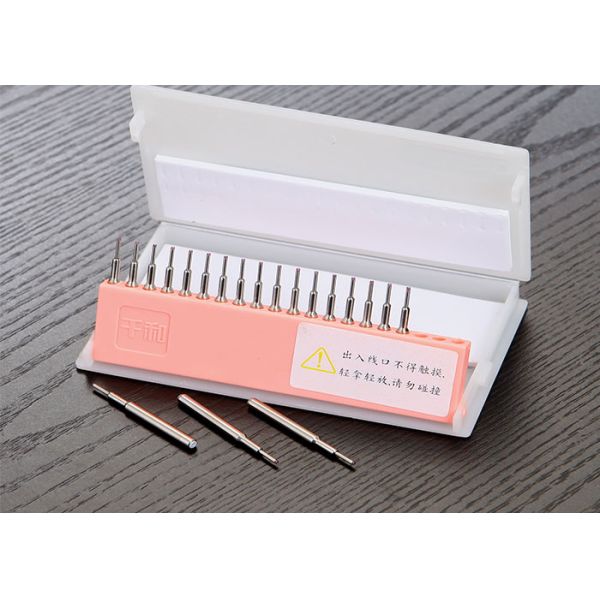

Coil Winding Nozzle
Coil Winding Ruby Nozzle
Coil Winding Tungsten Carbide Nozzle
Coil Winding Ceramic Nozzle
Nozzle inner bore with grinding effect
|
W0202-3006-3005 Tungsten Carbide Nozzle for CNC Automatic Coil Winder
Coil Winding Tungsten Carbide Nozzle for copper wire Ф0.16 W0404-3012-3808T
Custom Precise Exit Radii Tungsten Carbide Nozzle for fine wire W0404-2010-3510
resistance flexure Tungsten Carbide Nozzle with Precise Exit Radii
single crystal Ruby Nozzle with Inner bore Ф1.0mm TB1010-3020-3013 for High Speed Automatic Stator Coil Forming Machine
High Wear Resistance / Scratch Proofing wire guide tubes Ruby Tipped Coil Winder Nozzle with 0.3mm Inner hole
