1200mm Glazed Tile Roll Forming Machine JCX Roof Tile Making Machine

Categories Glazed Tile Roll Forming Machine
Brand Name: JCX
Model Number: Glazed Tile Roll Forming Machine
Certification: ISO9001 CE
Place of Origin: China
MOQ: 1 set
Price: USD8000-USD12500 PER SET
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS PER MONTH
Delivery Time: 20-30 working days
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Product name: Glazed Tile Roll Forming Machine
After Warranty Service: Line Support Video
After-sales Service Provided: Online Support Video Technical Support
Warranty: 12 Months,and life long tracking service
Advantage: Automatic Operation
Color: Client's Request
Control box language: Add Customer Request Language
Control system: PLC(detla) System
Export port: Tianjin Port
Need container: 1*40 Feet
  • Product Details
  • Company Profile

1200mm Glazed Tile Roll Forming Machine JCX Roof Tile Making Machine

JCX 2022 Year popular sell glazed aluminum roof tile roll forming making machine with best quality

1. Glazed steel roll forming machine

We offer full solution of roof tile forming making machine production line.
The basic procedure is combine decoiler & straightener, high speed punch press, servo feeder, main roll forming machine, auto shearing station and output tables.
Glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

2. Technical details of glazed steel roll forming machine

1material of input sheetgalvanized steel/ colored steel
2feeding width1200mm
3effective width960mm
4material thickness0.3-0.8mm
5main motor power4kw
6hydraulic pump power4kw
7forming step13steps
8diameter of shaft75mm
9main frame300H steel
10roller material45# steel with chrome
11cutting knives materialCr12
12control systemPLC control system with inverter (Delta brand)
13working speed6-8m/min
14machine size6.0*1.5*1.3m
15machine weightabout 3.5 tons
16voltage380v 3phase 50hz

3. Main components of glazed steel roll forming machine

Manual decoiler
1 pc (Capacity:5 tons)
Guiding Equipment
1 set
Covering film device
1 set
Roll Forming Equipment
1 set
Pressing equipment
1 set
Post-cutting Equipment
1 set
Hydraulic Station
1 pc
PLC Control Panel
1 pc
Supporter Table
1 set (Two pieces, 1.5m/piece)
Tool Box
1 pc

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

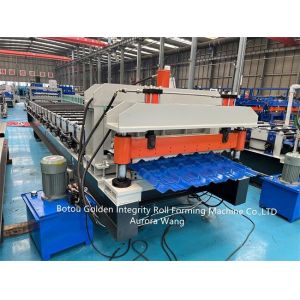

7. Product photo

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
