Sheet 1320mm Semi Automatic Die Cutting Machine Stripping Cardboard Corrugated Paper

Categories Semi Automatic Die Cutting Machine
Brand Name: JIGUO
Model Number: BMY-1320P
Certification: CE
Place of Origin: CHINA
MOQ: 1 set
Price: $130000 to $150000/1 Set
Payment Terms: L/C, T/T
Supply Ability: 50 set
Delivery Time: 45 days
Packaging Details: Wrap film or box
Weight: 16T
Warranty: 1 Year
After-sales service provided: Engineers available to service machinery overseas,Video technical support,Field installation
Dimension(l*w*h): 7000*4530*2260mm
Type: Die-cutting Machine,Paper Cutting Machine
Computerized: Semi-automatic
Power(w): 14KW
Name: Semi Automatic Die Cutting And Stripping Machine
  • Product Details
  • Company Profile

Sheet 1320mm Semi Automatic Die Cutting Machine Stripping Cardboard Corrugated Paper

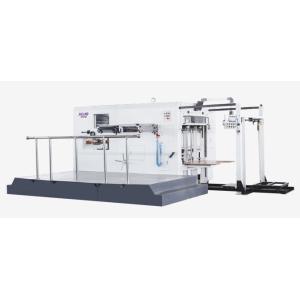

BMY-1320P Semi-automatic Die Cutting And Stripping Machine For Cardboard Corrugated Paper


BMY-1320P is the classic series which adopt below function on the basis of semi-automatic

die cutting machine, it is the initiate of home. Half-stripping system, automatic cleaning three

side and middle part, Clean and greatly improves efficiency. Stripping Mold adopt central

positioning system, automatic clipping, Upper Stripping mold adopt electric control lifting device

Products Description​

Max. sheet size1320X960(mm)
Min. sheet size450X400(mm)
Max. die cutting size1300X940(mm)
Max.cutting speed6000s/h
Sheet thickness

200-2000g/㎡(Card paper)

<8mm(corrugated paper)

Total power14kw
Net weight16T
Overall dimension7000X4530X2260mm
Air requirements0.8Mpa,>0.36m³/min


1)Main Chain drive:

The main driving system adopts crank and worm gear pair and special crank shaft linkage

mechanism connect by bearing shell which can reduce locomotive gap, avoid impacting and

ensure smooth running, pressure of die-cutting is high.

2)Electrical control part:

PLC control is adopted in Electronic Control System. There are various safe guarding devices

that when accident occurs, it will give an alarm by sound and light and shutdown automatically

to protect safety of man and machine.

3)Die cutting and creasing:

The reliable overload protective mechanism can make the driving and driven parts separated

automatically when overload accident occurs. The unique die-cutting frame can prevent the

die-cutting plate from dropping and separating effectively.

4)stripping part:

Male and Female die can be inserted into the machine from operation side to shorten the

set up time and for higher safety.Centerline system compatible to centerline II for quick

change over and short set up time 3 sides and middle parts was stripped to ensure more

working efficiency


1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
