Limestone Stone Hammer Crusher Machine Barite Coal PC600*800 Hammer mill crusher

Categories	Hammer Crusher Machine
Brand Name:	RUNWELL
Model Number:	PC600*800
Certification:	CE and ISO certificates
Place of Origin:	Shanghai, China
MOQ:	1 set
Price:	USD 15000-18000
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	50 sets per month
Delivery Time:	10-20 working days
Packaging Details:	Container, Nude Packs, in Bulk; Export Packing Standard
Warranty:	12 months from production time or 15 months from leave factory
Capacity(t/h):	20-25tph
Application:	Quarry,limestone,coal,mining,etc
Discharge sizes:	under 15mm
Max. Feeding size:	100mm
Weight:	3.7tons
After-sales service provided:	Our Engineers available to service machinery overseas,Online support,Video technical support
Color:	Customizable,yellow,blue,gray
Installation:	Our Engineer Guide,Under Technical Guidance
Power(Kw):	55Kw
Product name:	Hammer Mill Crusher, hammer mill,stone crusher
Spare parts supply:	Lifelong Time of the crushers
Name:	podwer hammer mill,limestone/gypsum/ shale hammer crusher
Keyword:	hammer crusher,hammer grinding mill for limestone, gypsum, coal
The machines classification:	Building Stone Production Line,Stone Crusher Machine,Small Stone Machine,hammer mill crusher for export

Contact Now

Add to Cart

Product Details
Company Profile

Limestone Stone Hammer Crusher Machine Barite Coal PC600*800 Hammer mill crusher

PC600800 Stone Hammer Crusher Machine for limestone, coal,barite crushing, Limestone Stone Hammer Crusher Machine Barite Coal PC600800 Hammer mill crusher

Hammer Crusher/Stone Crusher/Sand maker/Quarry Crusher

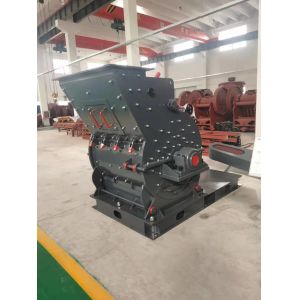

Hammer crusher

PC series of hammer crusher is widely used in metallurgy, mine, chemical, cement, coal, construction, sand making, refractory materials and ceramic industry. It is used in secondary or tertiary crushing, it is mainly suitable for crushing ores with compressive strength not exceeding 320MPa.

Hammer crusher is a crusher that directly crush those maximum particles size of 600-1800 mm material to 25 or less than 25 mm. Hammer crusher is suitable for crushing medium hard materials such as limestone, cinder, coke and coal in cement, chemical, electric power, metallurgy and other industrial sectors.

Hammer crusher is mainly composed of casing, rotor, bearing iron and grate, etc. The casing is divided into two parts. The steel plate is welded after cutting. The other parts are connected with bolts as a whole. High manganese steel lining plate is mounted inside the casing, which can be replaced after wear. Hammer crusher spindle is installed with an array of regular distribution of hammer, with the rotary table and hammer shaft to form a rotor.

Product Application

Working Principle of stone hammer crusher:
The main wroking part of hammer crusher is rotor with hammer, the rotors consist of main shaft, disk, pin shaft and hammers.The motor drives the rotor to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by high-speed hammer. There is a screening palte under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until they reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirements.

Hammer crusher is a crusher which can directly crush the materials with the big particle size to very fine particle. Hammer crusher is suitable for crushing medium hardness materials in cement, chemical industry, electric power, metallurgy and other industrial sectors, such as limestone, slag, coke, coal and other materials in the crushing and fine crushing operations.

The Most Hot-Sale Hammer Crusher for Stone&Rock

Model	Rotor speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Power (Kw)	Weight (t)
Model	Rotor speed (r/min)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Power (Kw)	Weight (t)
PC400×300	1200	≤80	≤10	3-10	11	0.7
PC600×400	1000	≤110	≤15	10-15	22	1.5
PC800×600	980	≤120	≤15	20-25	55	3.7
PC1000×800	980	≤200	≤45	34-54	110	6.9
PC1000×1000	1000	≤200	≤15	40-60	132	8.5
PC1200×1000	745	≤200	≤25	75-150	160	12.5
PC1200×1200	745	≤200	≤20	80-160	185	14.3
PC1400×1400	750	≤250	≤20	120-170	280	17.2
PC1600×1600	500	≤350	≤20	220-290	500	32.4
PCH600×400	970	≤200	≤30	22-33	15	1.7
PCH600×600	980	≤200	≤30	30-60	30	2.4
PCH800×800	825	≤300	≤30	75-105	45	4.8
PCH1000×1000	740	≤300	≤30	90-150	90	7.5

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
