| Categories | Panel Mount Printers |
|---|---|
| Brand Name: | MASUNG |
| Model Number: | MS-GM701 |
| Certification: | CE/RoHs |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 28~30USD/Pieces |
| Payment Terms: | T/T |
| Supply Ability: | 5000 |
| Delivery Time: | 5-15days |
| Packaging Details: | Cartons/foam material |
| Commands: | ESC/POS |
| System: | Windows/Linux/Android |
| Interface: | RS-232/TTL/USB |
| Pulse: | 100,000,000 |
| Storage humidity: | 5～95%RH |
| Storage temperature: | -20～60℃ |
| Working temperature: | 0～50℃ |
| Type: | mini thermal receipt printer |
| Max. resolution: | 384dots/line |
| Print speed: | 80mm/s |
| Products status: | Stock products |
| Printing method: | Thermal dot line printing |
| Weight: | 0.5KG |

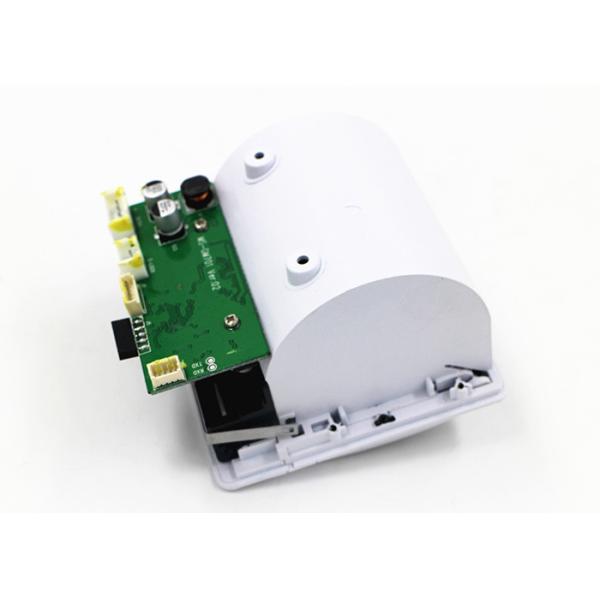

58mm Mini USB POS Thermal printer for Queue Machine with Free SDK Driver
Features
Competitive advantages:
Specification
Model | MS-SP701 | |
Mechanism | Printing method | Thermal dot line |
Dot numbers(dots/line) | 384 dots/line | |
Resolution (dots/mm) | 8 dot/mm | |
Printing speed(mm/s)max | 80 | |
Paper width(mm) | 58 | |
Printing width(mm) | 48 | |
Roll diameter max | Φ50mm | |
Paper thickness | 60～80 μm | |
Paper loading method | Easy loading | |
Auto cutting | No | |
sensor | Printer head | thermistor |
Paper end | Photo interrupter | |
Environment | Working temperature | 0～50℃ |
Working humidity | 10～90%RH | |
Storage temperature | -20～60℃ | |
Storage humidity | 5～95%RH | |
Reliability | Pulse | 100,000,000 |
Printing length(km) | Over 100 | |
Property | Dimension | 76.6×73.6×54.8mm |
Weight | 82±15g | |
Support | Interface | RS-232/TTL/USB |
Commands | ESC/POS | |
System | Windows/Linux/Android | |
Application
Cash register; handheld terminals; measuring instruments and analyzers; mobile printers; weighing scales; medical devices; vehicle mounted recorder and more
|
