Quarter Turn DCL-Ex10 CSA Explosion Proof Electric Actuator

Categories Explosion Proof Electric Actuator
Brand Name: DCL
Model Number: DCL-Ex10/Ex20/Ex40/Ex60
Certification: CE/ROHS/CSA/IP68/IECEx/ATEX/UL
Place of Origin: WUHAN,CHINA
MOQ: 1pc
Packaging Details: carton/pallet
Delivery Time: 7 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000PCS/month
Standard Torque: 100Nm to 600Nm
Standard Time: 30s to 45s
Total Weight: 5kg to 10kg
Power Supply: 24VAC/110VAV/220VAC/380VAC/24VDC
Motor Power: 15W to 90W
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Installation Angle: 360°
Sealing Grade: IP68 NEMA4X
  • Product Details
  • Company Profile

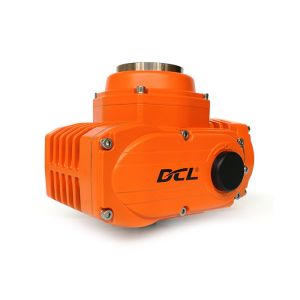

Quarter Turn DCL-Ex10 CSA Explosion Proof Electric Actuator

DCL-Ex10 Ex20 dimension and parameters.pdf

Over torque protection small packaged explosion proof electric actuator


  • Quarter turn operation with mechanical limits
  • Heavy duty motor with thermal overload protection
  • Rugged IP68/NEMA 4X aluminum alloy housing with powder coating
  • Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
  • Over torque protection is available
  • Anti-condensation heater is optional
  • Standard ISO5211 direct installation
  • Manual override with Allen wrench or handwheel
  • CSA certification


DCL explosion proof electric actuator can add over torque protection function inside cavity. Disc spring made in Germany with very long life span and very small deformation with frequently presses, are used to keep the over torque value set to be stable and no drift after long time operation.

Actuator can be used for over 90% explosive gas environment except for colliery. Motors and electronics are fire treated. The machining precise of the connection surface are strictly controlled and inspected from supplier to ensure the flameproof gap is small enough to block spark inside actuator. Aluminum housing is hard die casted with larger tonnage than common series electric actuator to be more dense and can suffer much larger explosive pressure.

CSA tests per UL and CSA standard, both for Zone system and Division system. CSA certification is obtained in 2022.


Output Torque50Nm100Nm200Nm400Nm600Nm
Acting Time20S30S30S30S45S
Turning Angle0-90°0-90°0-90°0-90°0-90°
Motor Power10W25W40W90W90W
Rated Current0.24/0.15A0.57/0.30A0.63/0.35A1.12/0.64A1.18/0.67A
Total Weight3.0kg5.0kg5.5kg9.5kg10.0kg
Input Signal4-20mADC,1-5VDC,2-10VDC
Output Singal4-20mADC
Basic Errornot more than ±1%
Reciprocating Errornot more than 1%
Dead Space0.5%-5.0% adjustable
Damping Characteristic0 times
Repeating Error in Actuator≤1%
Insulating Resistance100MΩ/500VDC
Withstand Voltage Class1500VAC 1minutes
Protection ClassIP68
Explosive-proof gradeExd II CT4Gb
Installation Angle360°at any angle
Electric Interface

2-M20*1.5 explosion-proof plug,clients should install corresponding explosion-proof cable connector

when using according to the cable selected.

Ambient Temperature-20℃~+60℃
Optional FunctionOver-torque protector/Dehumidify Heater/Passive contact switch
RemarkAny other input or output signal needed, please specified in purchase order.
