High Speed Industrial Digital Textile Printer With Waterbased Pigment Ink

Categories Digital Textile Printing Machine
Brand Name: SAER
Model Number: CSR 3200KJ
Certification: CE
Place of Origin: Shanghai of China
MOQ: 1 Set
Price: Negotiation
Payment Terms: T/T
Supply Ability: 50 sets / month
Delivery Time: 10 working days after get your payment
Packaging Details: Non fumigation wooden package
Application: Indoor decoration
Resolution: 1800dpi maximum
Color Mode: Dual CMYK
Voltage: 380V,50/60HZ
Print Head Type: kyocera Print Head(two or four optional)
Rip Software: Onyx
Working Type: Computer directly control output
Combine With: All-in-one Printer and one Filter Fan
Ink supply mode: 4color mode:400cc cartridge*2/color 800cc/color
Ink Supply Mode: Continous Ink Supply
Print Speed: 60sqm/hour in 4 pass
max speed: 120sqm / hour
  • Product Details
  • Company Profile

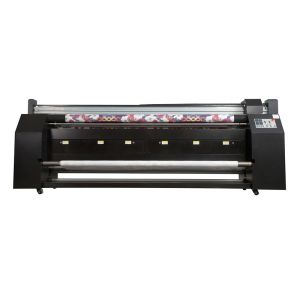

High Speed Industrial Digital Textile Printer With Waterbased Pigment Ink

High Speed Industrial Digital Textile Printer Use Waterbased Pigment Ink

Consist of:

One 3.2m all-in-one direct textile printing system(print and heat at the same time)

One filter fan for pollute waste air,protect the environment.


Directly use pigment ink print on roll textile material(cotton,silk,wool etc),then through high temperature of heating to dry the wet ink,the completed fabric can directly to make every kinds of products,like wall fabric,curtain,table cover and bed sheets,the fabric can stand sunshine and can wash,no fade.

Technical Detais:

Product NameDigital Textile Printing Machine
Model   CSR3200KJ
Combine With  3.2m All-in-one Printing system with one Filter Fan
Print headPiezo technology,Two / four KYOCERA print heads
InkPigment ink
Media Type  Cotton,Linen,Silk,Wool etc
Color modeDual CMYK
Nozzles(180nozzles*8lines)*2 /4 heads
Print head higherAdjustable
Ink supply mode4color mode:400cc cartridge*2/color 800cc/color
Max meterials width3300mm
Max printing width3200mm
Printing resolution and speedResolutionspeed
600*600dpi 2pass120㎡/h
600*600dpi 3pass60㎡/h
600*900DPI(3 pass)75㎡/h
600*1200dpi 4pass48㎡/h
720*1080dpi 6pass30㎡/h
Roll owter diameter3 Inch
Max weight for roll materials100kg
Printer Power  AC220-240V(Adaptive).50/60Hz±1Hz
Sublimation heater powerAC380V.30A
Printer Power consumtion 1500W
Heater Power consumtion8kw
Rip Software  Onyx
Compatible OS  Win XP & Win 7

Onyx Rip Software:

1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.

Available Ink and Material:

1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags,banner shows and for home decoration

2) Reactive Ink:For cotton,linen and silk etc.

After printing and heating,the materials can use to make clothes and scarf.

3) Pigment Ink:For all kinds of textile fabrics.


1. Low cost

2. High productivity

3. Dye Sublimation system

4. Directly print on textile material


Speed and precision perfectly reflected

With 1800 DPI highest precision and 120 sqm/hour fastest speed

Adopt high speed industrial KYOCERA printhead

X-ais use liner motion motor and magnetic grating

Y-axis use Fuji AC servo motor


Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier

How To Order:

Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
