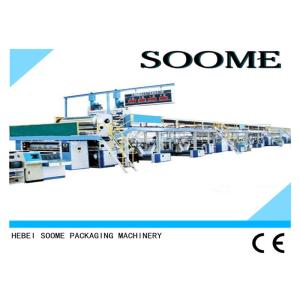

1600mm Corrugated Cardboard Production Line 2 Ply Single Facer For Making Carton

Categories Corrugated Cardboard Production Line
Brand Name: SOOME
Model Number: SMPL-DW-1600
Certification: CE
Place of Origin: Cangzhou, China
MOQ: 1set
Price: Negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30sets per month
Delivery Time: 35-45days after deposit
Packaging Details: Wrapped with film or in wooden case
Usage: For producing 2ply corrugated cardboard
Work width: 1600 / 1800 / 2000 / 2200mm
Driving type: Electrical
Design speed: 180m/min.
Economic speed: 120-150m/min.
Flute type: A / C / B / E flute
Total power: About 90kw
Total weight: About 12 tons
Service: Engineer is available to work overseas
Warranty: One year
  • Product Details
  • Company Profile

1600mm Corrugated Cardboard Production Line 2 Ply Single Facer For Making Carton

1600MM Corrugated Cardboard Production Line 2Ply Board Making Carton Machine Single Facer

I. Composition and Qty

SpecificationEquipment nameUNITQTY
ZJHydraulic shaftless mill roll standa2
/Paper trolleya4
SF-320CFingerless type single facera1
ZDFConveyor bridgeset1
DHC-150Single corrugated the aspect Cuttera1

II. Details of each part

ZJ Hydraulic shaftless mill roll stand

1. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others, the lifting of the paper adopts hydraulic drive.

2. Brake adjustable adopts multiple point braking system.

3. Every stand matched two sets paper car, and they can load paper roll on the both sides at the same time.

Paper trolley, track

1. The whole track buried, the main frame of the 14th channel steel with Ф20mm cold drawn welded round, length of track 6000mm.

2. Each paper holder matched two sets paper trolley, and paper on both sides at the same time. Pull the roller paper to the right place.

RG-1-900 Preheater

1. Preheat roller according to the pressure container national standards and enclose the pressure container certificates and inspection certificate.

2. Each roller surface after grinding precision grinding and dealing with hard chrome plating, surface friction is small, durable.

3. Electromotion adjustment angle, and angle can rotate adjustment the preheat area in the range of 360°.

SF-320C Fingerless type single facer

1. High quality resin sand casting, wallboard thickness 20cm. Adopt independent gear box, universal joint transmission structure.

2. Glue roller unit structure with the overall relocation, improve the working efficiency.

3. The humidity control apparatus equipped with a spray, so flute type can maintain good stability of deformation, avoid drying.

4. Automatic circulation system for glue, two cylinder pneumatic gluing device, with good cushioning effect.

5. Active force variable frequency motor drive, energy efficient, low failure rate.

6. Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.

ZDF conveyor bridge

1. This part of the main frame with channel, beam, angle and so connected together.

2. Other sides are equipped with safety barriers and security herringbone pedal operation face a safety ladder, ensure staff safety and ease of operation.

3. Independent variable frequency motor lifting mechanism, PVC conveyor belt, a single watt of cardboard into a wavy rule stable.

4. All roller surface after grinding hard chrome plated.

5. Bridge over the auxiliary high-strength composite sheet, smooth, durable, low friction, reducing transportation resistance cardboard.

DHC-150 Single corrugated the aspect cutter (Spiral knife cross cutting, NC thin knife slitting, down stacking)

1. Store 200 groups of orders, the HMI display information can be found anytime, modify, append, canceled.

2. Germany KEB servo motor drive controller, high-performance synchronous servo motor drive.

3. Cutting machine adopts inlaid front steel blade structure, hardened gear grinding back lash free transmission high precision and long lifetime.

4. Host wall of grey platform lifting, reach a certain number of right-angle transverse, three section of the paper, some design paper roll straight bend output, second overlapping fixed length buffer, three points pneumatic separate, accelerate export cardboard. Improve working efficiency. The max. Length of stacking is 1.3m. This machine is suitable for efficient production color printing business.

5. For a single fast, for a single time 3-8s.

6. Use thin tungsten steel alloy knife, blade sharp, the using life is more than 8 million.
