Cz Purlin Roll Forming Machine , Metal Roll Forming Machine 15-20m / Min Speed

Categories Purlin Roll Forming Machine
Brand Name: Techwell
Model Number: TW-CZ500
Certification: CE, ISO
Place of Origin: China
MOQ: 1 Set
Price: Contact us
Payment Terms: 40% T/T in advance, 60% T/T before shipment
Supply Ability: 20 sets
Delivery Time: 55-65 working days
Packaging Details: Standard packing
Material of Roller Shaft: 45# high grade steel
Roller Material: Gcr15 bearing steel, forged and quenched hardness HRC58-62
Material Thickness: 1.5-3.0mm
Forming Stations: About 15 Stations (Depend on profiles)
Working Speed: 15-20m/min
Punching Type: Hydraulic Pre-punching
  • Product Details
  • Company Profile

Cz Purlin Roll Forming Machine , Metal Roll Forming Machine 15-20m / Min Speed

Quick Interchangeable CZ Purlin Roll Forming Machine With High Productivity, 15-20m/min Forming Speed

Main Components

Decoiler / Uncoiler1 Unit
Feeding Guide & Straighten Device1 Unit
Hydraulic punching1 Unit
Hydraulic Pre-cutting1 Unit
Roll Forming Machine1 Unit
Rectify Rollers1 Unit
Electrical Control System1 Unit
Run-out Table1 Unit

Working Flowing

Decoiler --- Feeding Guide & Leveling and Straighten --- Punching --- Hydraulic Pre-cutting --- Roll

Forming Machine --- Run-out Table

Detail Specifications

1. 5 Ton Passive Decoiler

1) Structure of pedestal, braking, mandrel holder, slider narrow and expanding
2) Capacity of decoiler: 5Ton
3) Max. width: 500mm
4) Inner diameter for coil: 440mm-530mm
5) Out diameter: 1500mm

2. Feeding Guide & Straighten Device

1) The purpose is to guide the metal sheet into the roll forming machine and make sure the metal sheet at the correct position with the roll forming system.
2) It can be left and right adjusted by adjusting the screw. Also the left and right adjusting can be independent operating.
3) The five roller straighten leveling device is quenched and hard chrome coated to straighten the rough sheet and reduce the material strength for roll forming.
4) Motor for feeding and straighten device: 5.5KW

3. Hydraulic System for Punching and Pre-cutting Device

1) This device consisted by punching mould, cutting blade, oil cylinder and hydraulic station.
2) Pre-cutting before roll forming which no need to change cutting mould.
3) Material of punching and cutting blade: Cr12Mov, quench hardness 58-62
4) Power for cutting: Hydraulic power: 7.5KW

4. Main Roll Forming Machine

1) Raw Material: forming thickness 1.0-4.0mm, Yield strength Q235 galvanized steel and hot rolled steel
2) Roll forming station: 15 stations
3) Rectify roll station: 2 stations
4) Axis Diameter: ∅85mm
5) Shaft material: 45# high grade steel
6) Roller material: Gcr15 bearing steel, forged and quenched hardness HRC58-62
7) Roller process: CNC lathe processed, surface polished or black treated
8) The gap between upper layer rollers and bottom layer rollers can be adjusted by screw according to different thickness sheet.
9) The interchange from C to Z is only need to adjust two station rollers
10) Motor power: 18.5KW
11) Transmission: High strength chain
12) Working speed: 15-20m/min (Not including cutting time)

5. Electrical Control System

1) The whole line controlled by PLC control and frequency speed control to achieve automatic. The friendly interface can set the bath, product length and quantity.
2) PLC: Panasonic, Japan
3) Frequency control: YASKAWA, Japan, 18.5KW
4) Other low voltage: Schneider
5) Encoder: Omron
6) Operate panel: Touch screen

6. Run-out Table

Consisted by tubular frame with support rollers to load and transfer products

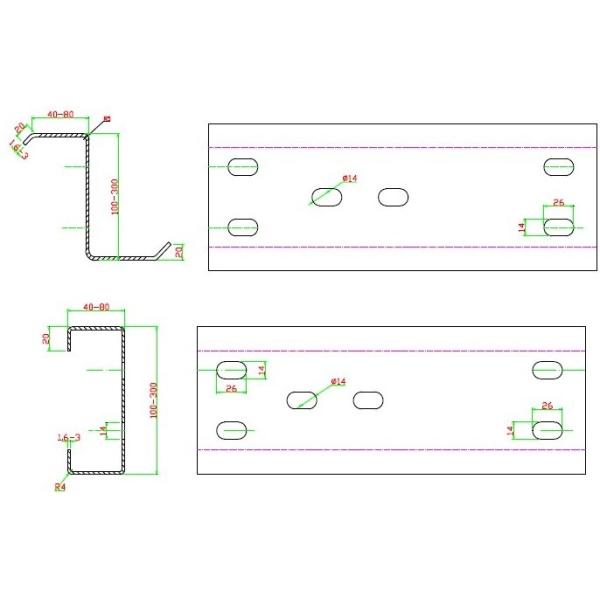

Reference Profile Drawing

Our Advantages

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

More Reference Machine Pictures


ompanyWuxi Techwell Machinery Co.,LTD
Mobile0086-15861597732( Lemon )
E-Mail / Skypesales@wxtechwell.com
Reference Video Linkhttps://youtu.be/K4RN47lJIaQ
